K2 Utility Trailers

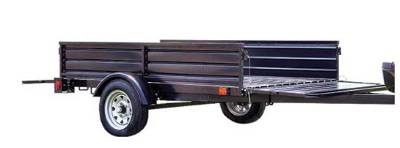

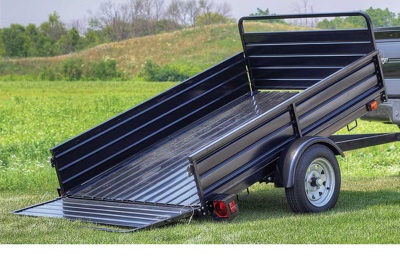

K2 5x7 Utility Trailer
- The trailers are engineered to provide exceptional balance and ease of mobility without giving up one ounce of payload capacity.
- Every trailer is made from 100% welded tubular steel with expanded steel decks.
- Our back gate design is multi-purpose and can sit flat in the bed, up in a vertical position, or lying down as a ramp for easy loading.
Trailer Specifications
Specification
|
Dimensions
|
GVW
|
2,090 lbs.
|
Curb Weight
|
451 lbs.
|
Payload Capacity
|
1,639 lbs.
|
Bed Dimensions
|
52" x 88" But Can Go Up To 136" With Load Bearing Front & Rear Gate Lowered
|
Overall Length
|
177"
|
Floor Height
|
20"
|
Construction / Frame Material
|
Fully Welded HD Tubular Steel Frame
|
Removable Side Panels
|
14" High Corrugated Steel
|
Load Bearing Front & Rear Gate
|
24"Ramp Gate - Reinforced square tube steel ramp with heavy duty round tube exterior frame
|
Lighting
|
Trailer comes pre wired with quick connect LED lighting. Complies with DOT requirements. Adjustable rear light protectors and protected side markers
|
Hitch Height
|
16"
|
Flooring
|
100% welded down corrugated steel
floor panel
|
Note: NEEDS TO BE ASSEMBLED. HITCH CORNER CHARGES $ 348.00 TO ASSEMBLE
Click Here To View Video of the Assembly of the Trailer
|
Click Here To View Video of the Trailer In Action
|

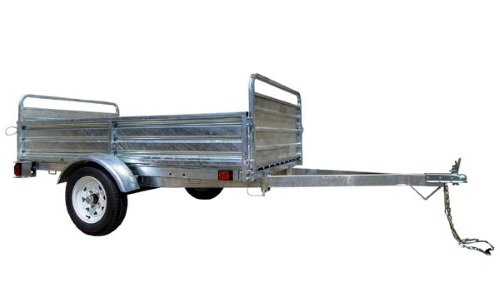

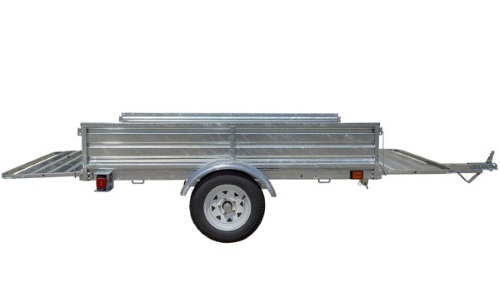

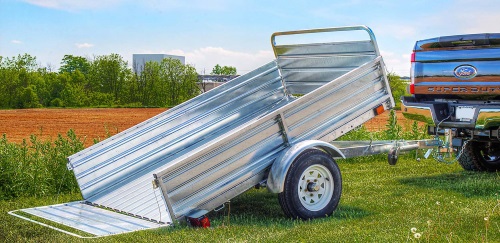

K2 GALVANIZED 5x7 Utility Trailer
- Hot Dipped Galvanized 5 x 7 Utility Trailer.
- Constructed from 100% steel all the components are reinforced, adjustable, removable or interchangeable. The MMT5X7G is fully welded and
hot dipped galvanized to protect the steel from the elements especially in coastal regions.
- This unit offers the end user excellent value for their money and will dramatically add to the life of the trailer kit.
- Each trailer ships in a single carton including pre wired LED lighting for easy installation.
- Extended bed length nearly 12" / 3.66 metres.
- 2 position dump bed
- 2" coupler with safety chains
- Our back gate design is multi-purpose and can sit flat in the bed, up in a vertical position, or lying down as a ramp for easy loading.
Trailer Specifications
Specification
|
Dimensions
|
GVW
|
2,090 lbs.
|
Curb Weight
|
451 lbs.
|
Payload Capacity
|
1,639 lbs.
|
Bed Dimensions
|
52" x 88" But Can Go Up To 136" With Load Bearing Front & Rear Gate Lowered
|
Overall Length
|
177"
|
Floor Height
|
20"
|
Construction / Frame Material
|
Fully Welded Hot Dipped Galvanized Tubular Steel Frame
|
Removable Side Panels
|
14" High Corrugated Steel
|
Load Bearing Front & Rear Gate
|
24"Ramp Gate - Reinforced square tube steel ramp with heavy duty round tube exterior frame
|
Lighting
|
Trailer comes pre wired with quick connect LED lighting. Complies with DOT requirements. Adjustable rear light protectors and protected side markers
|
Hitch Height
|
16"
|
Flooring
|
100% welded down corrugated steel
floor panel
|
Note: NEEDS TO BE ASSEMBLED. HITCH CORNER CHARGES $ 348.00 TO ASSEMBLE
Click Here To View Video of the Assembly of the Trailer
|
Click Here To View Video of the Trailer In Action
|
K2 4x6 Utility Trailer
- The trailers are engineered to provide exceptional balance and ease of mobility without giving up one ounce of payload capacity.
- Every trailer is made from 100% welded tubular steel with expanded steel decks.
- Our back gate design is multi-purpose and can sit flat in the bed, up in a vertical position, or lying down as a ramp for easy loading.
Trailer Specifications
Specification
|
Dimensions
|
GVW
|
1,600 lbs.
|
Curb Weight
|
305 lbs.
|
Payload Capacity
|
1,295 lbs.
|
Bed Dimensions
|
48" x 72"
|
Overall Length
|
152"
|
Floor Height
|
18"
|
Construction / Frame Material
|
Fully Welded HD Tubular Steel Frame
|
Side Panels
|
Solid Sides
|
Ramp
|
36" Floating Ramp Gate - Reinforced square tube steel ramp with heavy duty round tube exterior frame
|
Lighting
|
Trailer comes pre wired with quick connect LED lighting. Complies with DOT requirements. Adjustable rear light protectors and protected side markers
|
Hitch Height
|
14"
|
Flooring
|
100% welded down corrugated steel
floor panel
|
Note: NEEDS TO BE ASSEMBLED. HITCH CORNER CHARGES $ 348.00 TO ASSEMBLE
Click Here To View Video of the Assembly of the Trailer
|
Click Here To View Video of the Trailer In Action
|
